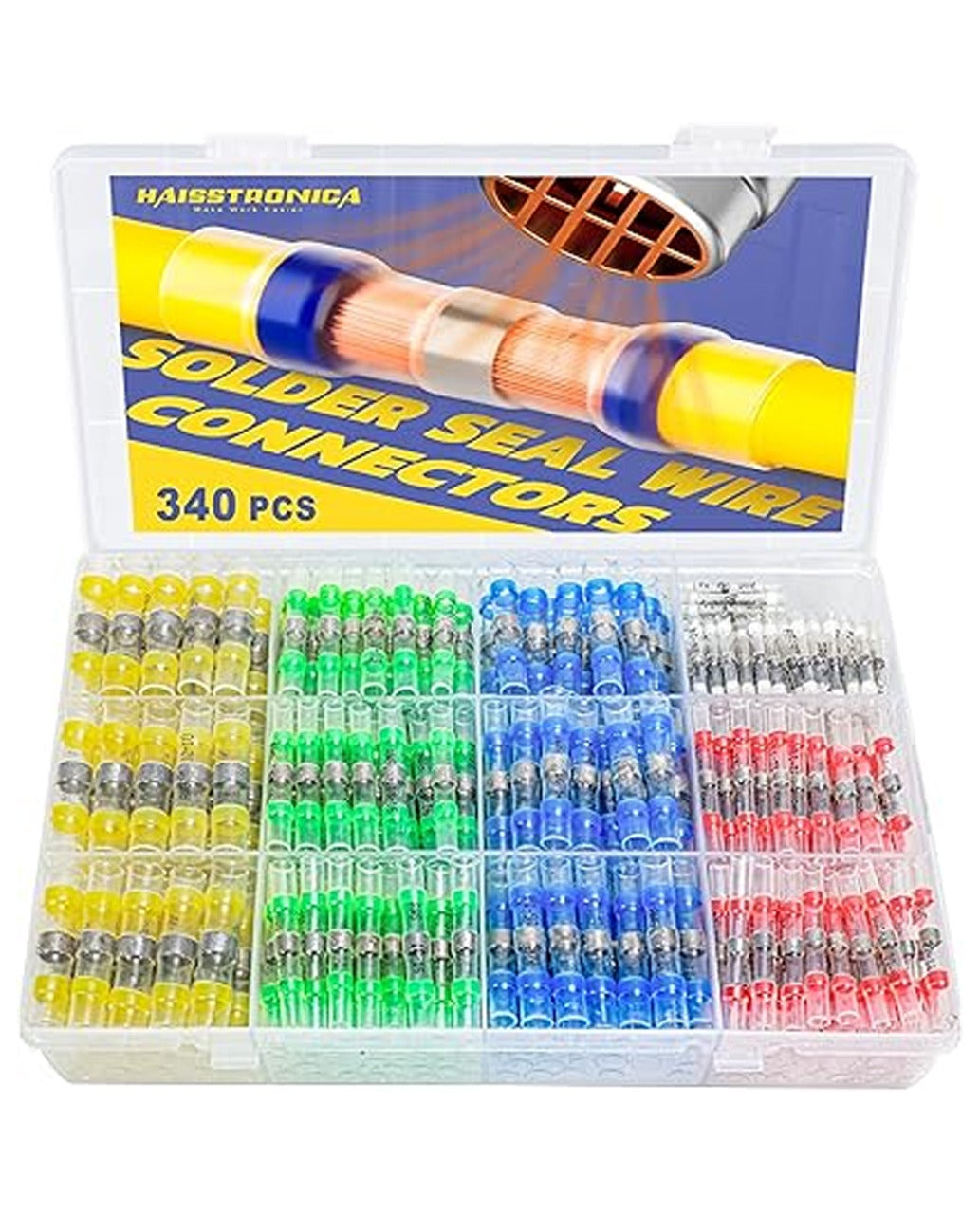

Heat shrink solder connectors look simple in a tray and fussy the first time you heat one. The sleeve has to sit in the right place, the copper has to meet, and the ring has to melt without scorching the tube. The Perspectaa Haisstronica 340PCS kit is described as a 340-piece assorted connector set with built-in solder ring technology, a waterproof and weatherproof seal, corrosion-resistant construction, and quick, reliable wire connections. It is listed at $35.65. The page does not print a step-by-step, so this article separates ordinary splice practice from claims the seller actually made.
Use scrap wire for the first joint. A repair on a tool you need tonight is a bad place to learn how a sleeve behaves. Nothing below replaces turning power off, and nothing below adds a voltage rating the listing does not contain.
What heat shrink solder connectors are doing
A typical solder-ring connector is a closed tube. You cannot slip it over a finished splice, because the tube has to go onto one wire before the ends are joined. That geometry is how this category usually works. This product page does not draw the tube or say "slide on first." Confirm the shape when the kit arrives. If a piece is not a closed sleeve, do not force the method for a different part.
The page does say the connectors use a built-in solder ring and a waterproof, weatherproof seal. Heating is how that kind of ring is meant to flow and how shrink tubing is meant to tighten. The listing never names a heat gun, a temperature, or a number of seconds. Bring your own heat source. Do not assume one is in the 340-piece count.
A careful sequence that stays honest
Set up the wire before you heat anything
Disconnect power. That is basic practice for any wire splice, not a feature printed on this kit. Separate the wire you are repairing from a battery or an outlet so a slip does not become a short. The product page does not discuss household mains, vehicles, or low-voltage toys. If you do not know the circuit, stop and get someone who does.
Cut out the damaged bit so you are joining clean ends. Strip only enough insulation to let the copper meet inside the sleeve. The page does not give a strip length. Too little copper and the ring has nothing solid to wet. Too much bare copper and the seal may not cover the exposed metal. Look at the sleeve you picked, because the kit is assorted and the page does not list sizes.
Place the sleeve, then heat
Slide the connector onto one side before you overlap or twist the conductors. Center the solder ring over the joint if you can see the ring through the tube. The page calls it built-in solder ring technology. It does not say to add a second blob of solder from a spool. If the ring is the solder, use the ring.
Heat evenly and keep the flame or the nozzle moving. You are watching for the ring to change and the tube to shrink around the wire. Stop when the sleeve has tightened and the ring has flowed, not when the plastic smells burnt. Those cues are general heat-shrink practice. This listing does not illustrate a finished joint, so a practice piece is how you learn what "done" looks like on these parts.
After the joint cools
Let the sleeve cool before you bend it. A hot ring can reopen if you flex the wire immediately. Tug gently. A joint that slides apart was not a connection, even if the tube looks neat. The page says the connectors are for quick, reliable wire connections. Reliability still depends on copper that actually joined, which you can only see on the piece in your hand.
The waterproof and weatherproof seal is the seller's description of the sleeve, not a dunk test you should invent in a bucket and then trust with a critical circuit. If the joint will live outdoors, the listing is aimed at weather, and it still does not name a depth or a standard. Inspect the ends of the tube. If bare copper sticks out past the seal, the size was wrong or the strip was too long. Choose another sleeve from the assortment rather than calling a short tube good enough.
What this kit does not walk you through
| You can take from the page | You must supply yourself |
|---|---|
| Built-in solder ring | A heat source, because none is listed |
| Waterproof and weatherproof seal | Judgment about whether the tube covered the copper |
| 340 assorted pieces | Matching a sleeve to the wire, sizes unlisted |
| Corrosion-resistant construction | A metal name, which is not printed |
| Quick, reliable wire connections | Power off, and a scrap practice joint |
See the current wording on the Haisstronica solder connector kit before you assume a tool or a gauge chart is included.
Care and storage that the page does not spell out
The listing does not give a storage temperature or a shelf life. Keep the sleeves dry and untangled so the rings are not crushed before you use them. A crushed ring is harder to center. That is handling sense, not a printed rule. If a bag arrives open or the count looks wildly short of 340, write to perspectaasupport@gmail.com before you heat half the kit and lose track of what was missing.
Do not store hot tools in the same pouch as the sleeves. The page does not describe the packaging beyond the kit itself. Melted tubes are not a connection method.
Shipping, timing, and returns
If you are waiting on this kit to finish a repair, build in the real window. Orders are processed within 2–5 business days. Estimated delivery after dispatch is 7–15 business days in the US and 8–20 business days in Canada. Shipping rates are calculated at checkout. A $35.65 price is not the full cost until that rate is on the screen.
Eligible items can be returned within 14 days of delivery. Practice joints use pieces. If you might return an unused assortment, keep it intact until you are sure, and read the return conditions first. Heated connectors are a weak candidate for "I changed my mind."
Mistakes the first joint usually includes
Heating before the sleeve is on the wire is the classic miss. You then have a finished-looking twist and a tube that cannot pass over it. Cut the practice joint off and start again. The 340-piece count is there so a learner can spend a few sleeves. It is not a reason to skip the slide-on step.
Another miss is using the largest sleeve on a thin wire because it was on top of the tray. The seal needs to shrink down to the insulation. The page says the kit is assorted and does not say every sleeve fits every wire. Pick a closer size.
A third miss is calling the joint waterproof because the tube changed color. Look at coverage. The product page says the seal is waterproof and weatherproof. It does not say a half-covered splice inherited that description.
Questions while you work
Can I use a lighter?
The page does not name a heat tool. A direct flame is easy to overdo on a small sleeve. If you use one, keep it moving and practice on scrap. A hot-air source is the usual category approach. Neither tool is listed as included.
Should I add extra solder?
The listing sells built-in solder ring technology. It does not tell you to feed a spool into the tube. Use the ring that is already there unless you have a separate reason and the skill to do something the page does not describe.
What if the wire is stranded?
The page says wire connections and does not split stranded from solid. Twist stranded ends so they stay together under the ring. That is ordinary practice. It is not a gauge limit, which the page also does not give.
Learn the sleeve, then trust the joint you can see
Heat shrink solder connectors in this kit are assorted sleeves with a solder ring and a seal the page calls waterproof and weatherproof. Slide the tube on first, center the ring, heat until it flows and shrinks, and let it cool. Leave any rating the listing skipped off your job.
When you want the piece count and the $35.65 price together, open the 340-piece solder kit and check the shipping rate at checkout before you count on a delivery date.
